Product
i-Smart 30 Electrolyte Analyzer
Features
- Equipped with a seven-inch color touchscreen and user-friendly software
- An all-in-one cartridge system including electrodes, reagents, and all other consumables
- Rapid testing time (35 seconds) and small sample volume (50 μL)
Product Information
Size / Weight
256 x 292 x 208 mm / 5.5 kg
Operating Temperature
15-35 °C
Display
7 inch color LCD (touchscreen)
Printer
Two-inch (built-in) thermal printer
Interface
Serial (RS-232), LAN (RJ45 Ethernet)
Power
100–240 VAC, 50/60 Hz
Built-in battery
Up to 2 hours of use (lithium-ion cell)
Cartridge

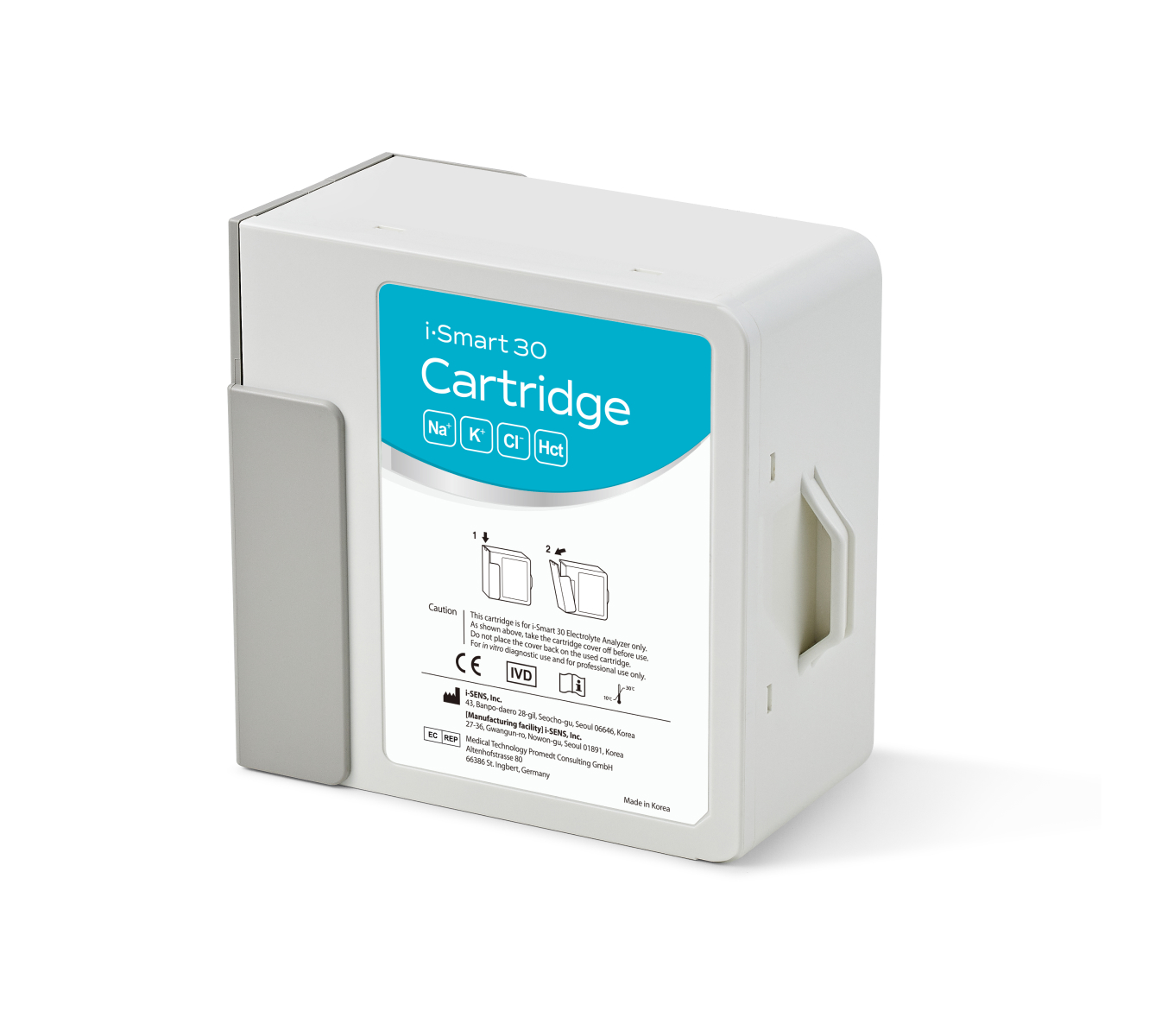

i-Smart 30 Cartridge
Measurement items
Na+, K+, Cl–, Hct
Sample type
Whole blood, Plasma, Serum
Sample volume
50 μL
Testing time
35 seconds
Calibration
Automatic or manual
Cartridge specifications
50 tests for 2 weeks
50 tests for 3 weeks
100 tests for 2 to 3 weeks
150 tests for 2 weeks
200 tests for 2 weeks
300 tests for 2 weeks
50 tests for 3 weeks
100 tests for 2 to 3 weeks
150 tests for 2 weeks
200 tests for 2 weeks
300 tests for 2 weeks
Expiration date
18 months from the manufacturing date

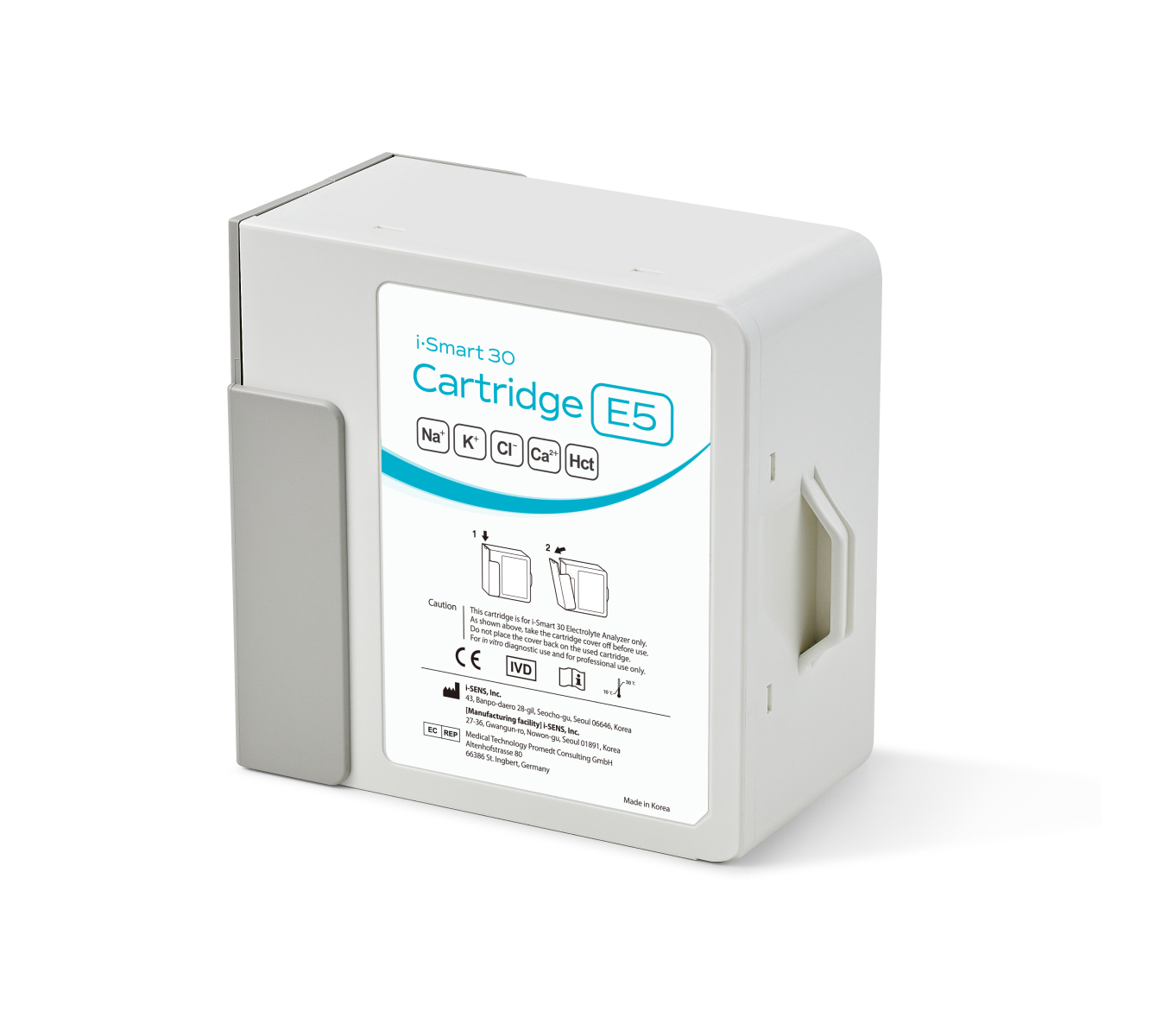

i-Smart 30 Cartridge E5
Measurement items
Na+, K+, Cl–, Ca2+, Hct
Sample type
Whole blood, Plasma, Serum, and Urine
Sample volume
50 μL
Testing time
35 seconds
Calibration
Automatic or manual
Cartridge specifications
50 tests for 2 weeks
50 tests for 3 weeks
100 tests for 2 to 3 weeks
150 tests for 2 weeks
200 tests for 2 weeks
300 tests for 2 weeks
50 tests for 3 weeks
100 tests for 2 to 3 weeks
150 tests for 2 weeks
200 tests for 2 weeks
300 tests for 2 weeks
Expiration date
12 months from the manufacturing date
Quality Control

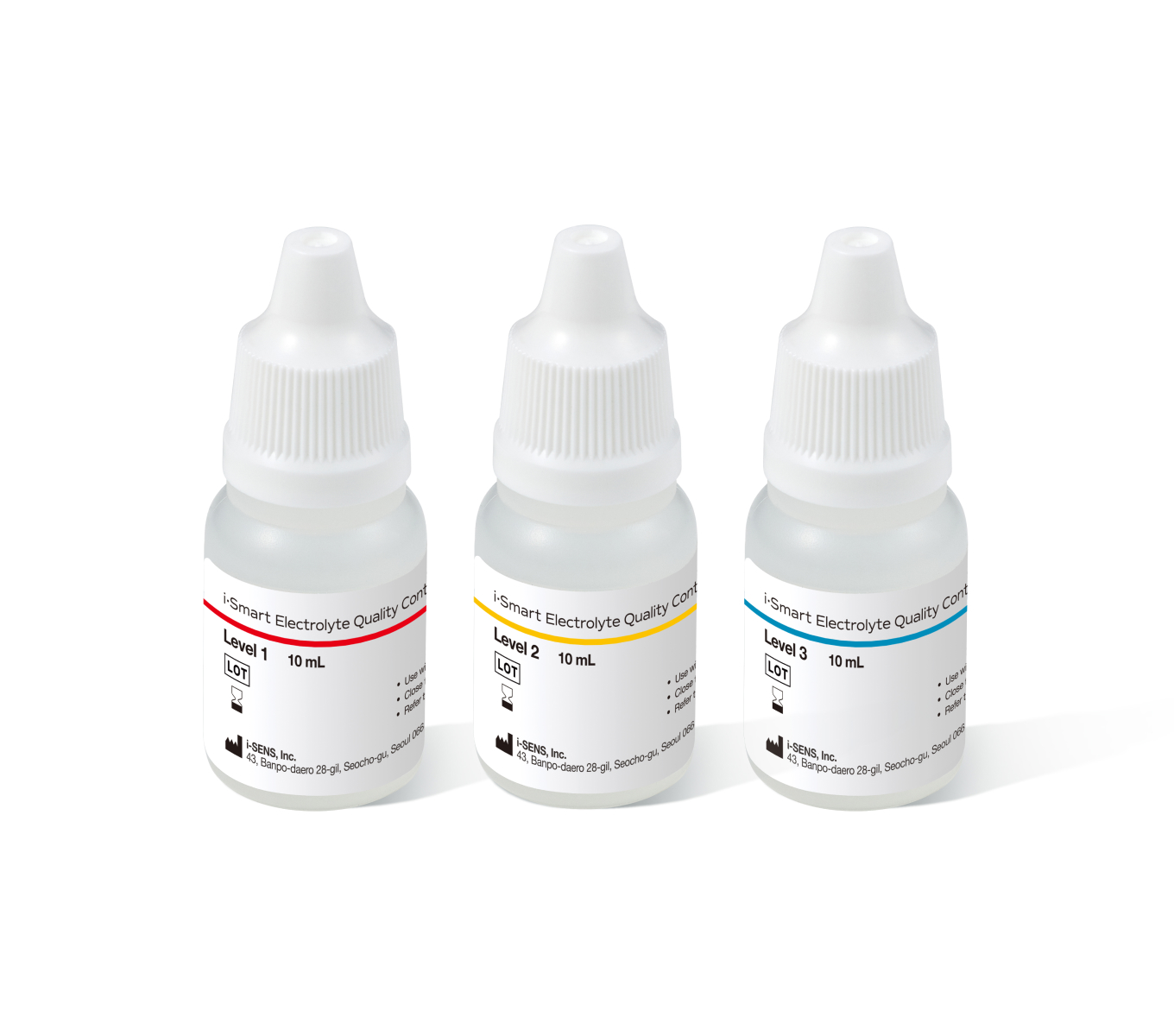

i-Smart Electrolyte Quality Control
Features
Electrolyte Control Solution
Use with
i-Smart 30 VET Cartridge, i-Smart 30 VET Cartridge E4
Level
1, 2, 3
Volume
10 mL per level
