CareSign-V

Features

  • Veterinary Immunochemistry Analyzer
  • UAC, HbA1c, GA tests
  • Easy and simple to use with step-by-step instructions and intuitive GUI
  • Convenient and accurate testing with All-in-One cartridges
Product Inquiry

Product Information

Size / Weight
290 × 250 × 130 mm / 3.8 kg
Operating Temperature
10-32 °C
Display
7 inch color LCD (touchscreen)
Memory
Stores 5,000 test results (QC 5,000 results, separately)
Interface
Serial (RS-232), LAN (RJ45 Ethernet)
Power
100–240 VAC, 50–60 Hz, 100 VA

Cartridge

ACR 카트리지

UAC Cartridge

Types of animals
Canine, Feline
Sample type and volume
Urine 40 μL
Testing time
7 minutes
Storage temperature
2 to 30 °C (35 to 86°F)
Shelf life
12 months
Accuracy
± 15% of target value (95% CI)
Precision
Albumin CV 8%, Creatinine CV 8%
HbA1c 카트리지

HbA1c Cartridge

Types of animals
Canine
Sample type and volume
Capillary blood, Anticoagulated venous blood 2.5 μL
Testing time
4 minutes 20 seconds
Storage temperature
1 to 30 °C (34 to 86°F)
Shelf life
24 months
Accuracy
± 6 % of target value (95 % CI)
Precision
CV 3%
GA 카트리지

GA Cartridge

Types of animals
Canine, Feline
Sample type and volume
Serum, Lithium heparin treated plasma 5 μL
Testing time
5 minutes
Storage temperature
2 to 8 °C (35 to 46°F)
Shelf life
6 months
Accuracy
± 20% of target value (95% CI)
Precision
CV 5%

Quality Control

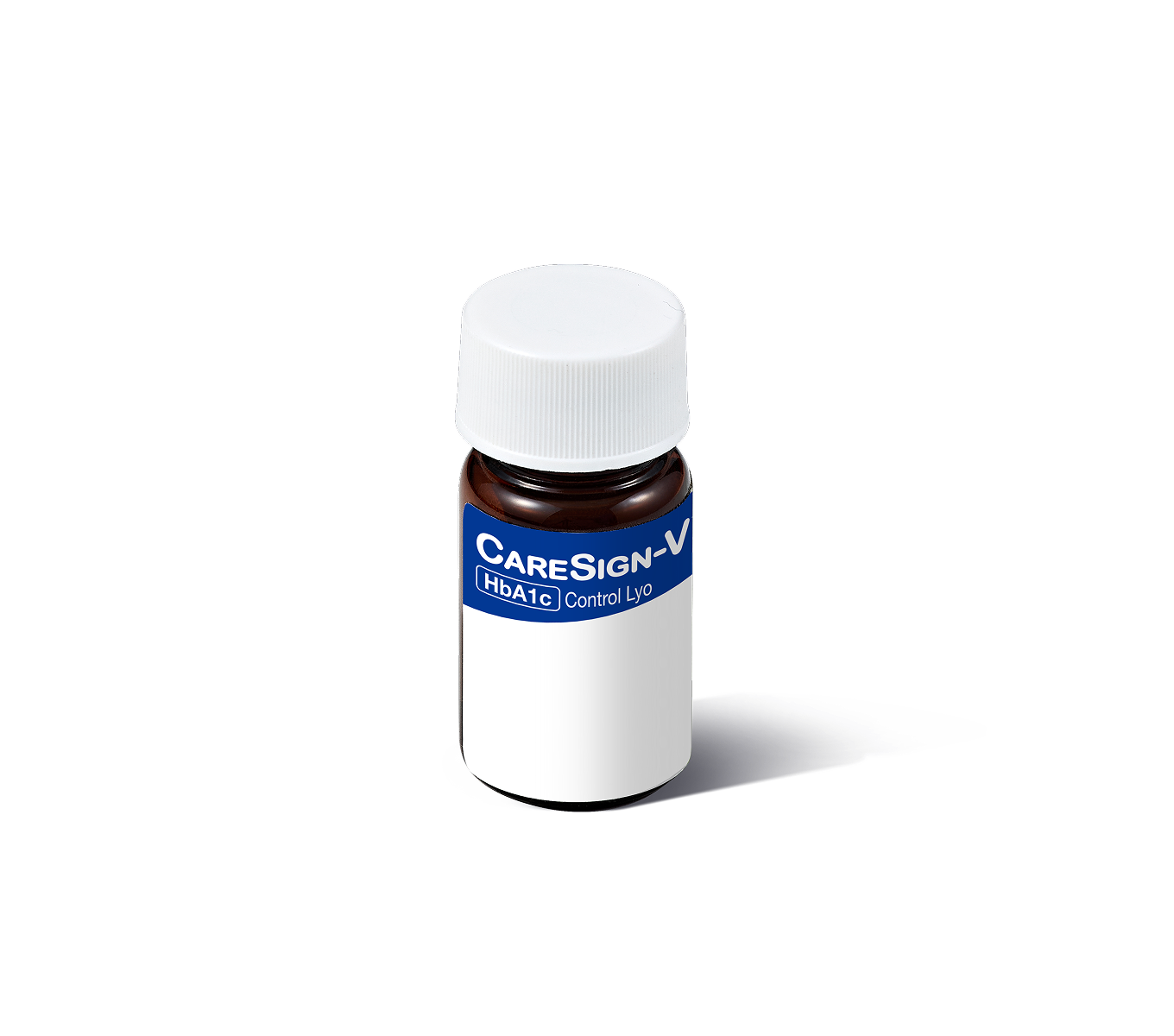

CareSign-V HbA1c Control

Features
Use with the CareSign-V analyzer and HbA1c cartridge
Level
1, 2
Volume
0.5 mL per level

CareSign-V UAC Control

Features
Use with the CareSign-V Analyzer and UAC cartridge
Level
Normal, Abnormal
Volume
2.0 mL per level

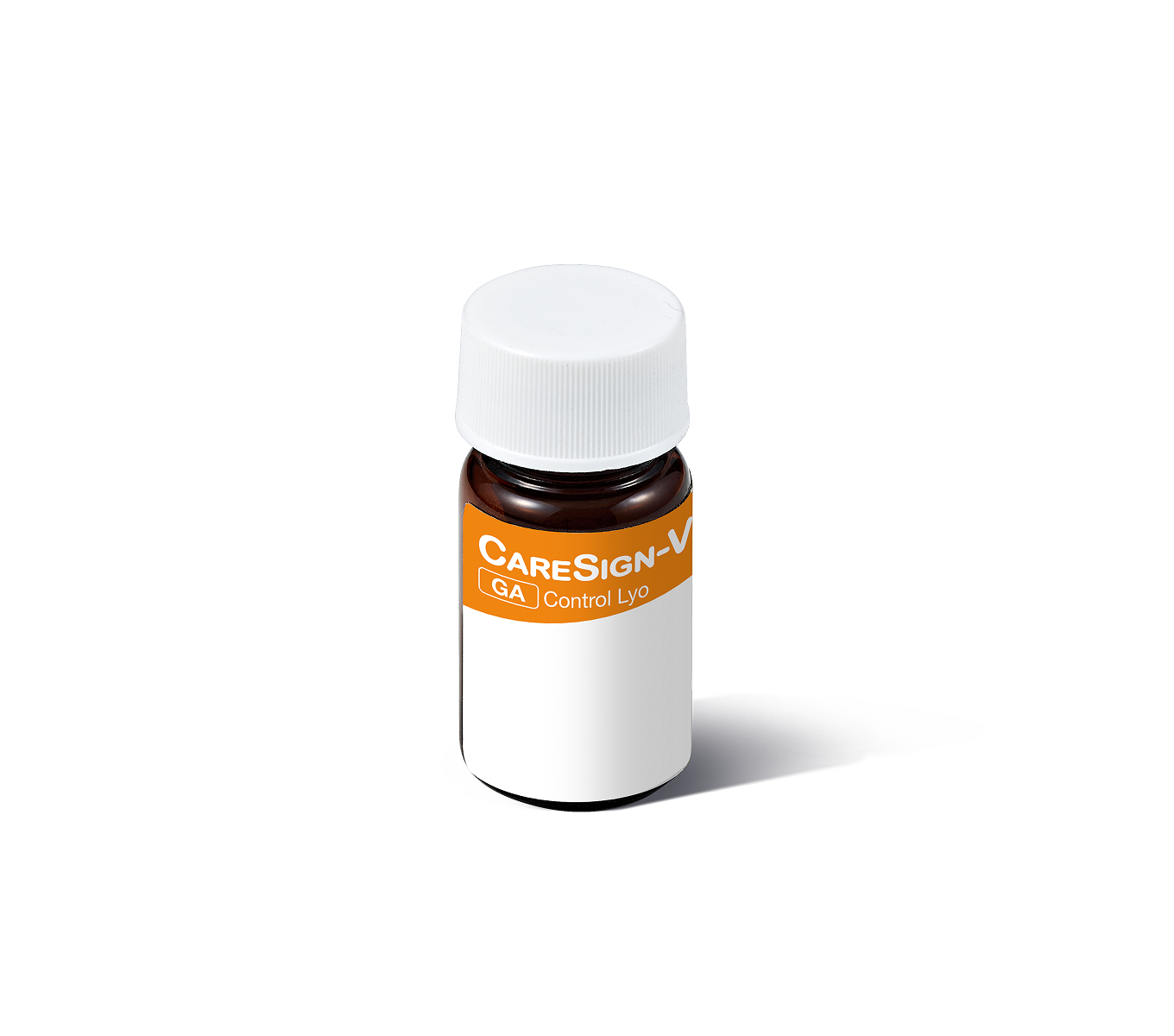

CareSign-V GA Control

Features
Use with the CareSign-V analyzer and GA cartridge
Level
1, 2
Volume
0.5 mL per level
