i-Smart 300

Product

i-Smart 300 Blood Gas Analyzer

Features

  • An all-in-one cartridge system including electrodes, reagents, and all other consumables
  • Rapid testing time (50 seconds) and small blood volume (100 μL)
  • Comes equipped with a built-in battery and is easy to move due to its lightweight, enabling on-site inspection
Product Inquiry

Product Information

Size / Weight
257 X 394 X 252 mm / 7.1 kg
Operating Temperature
15-35 °C
Display
8 inch color LCD (touchscreen)
Printer
Two-inch (built-in) thermal printer
Interface
Serial (RS-232), LAN (RJ45 Ethernet)
Power
100–240 VAC, 50/60 Hz
Built-in battery
Up to 2 hours of use (lithium-ion cell)

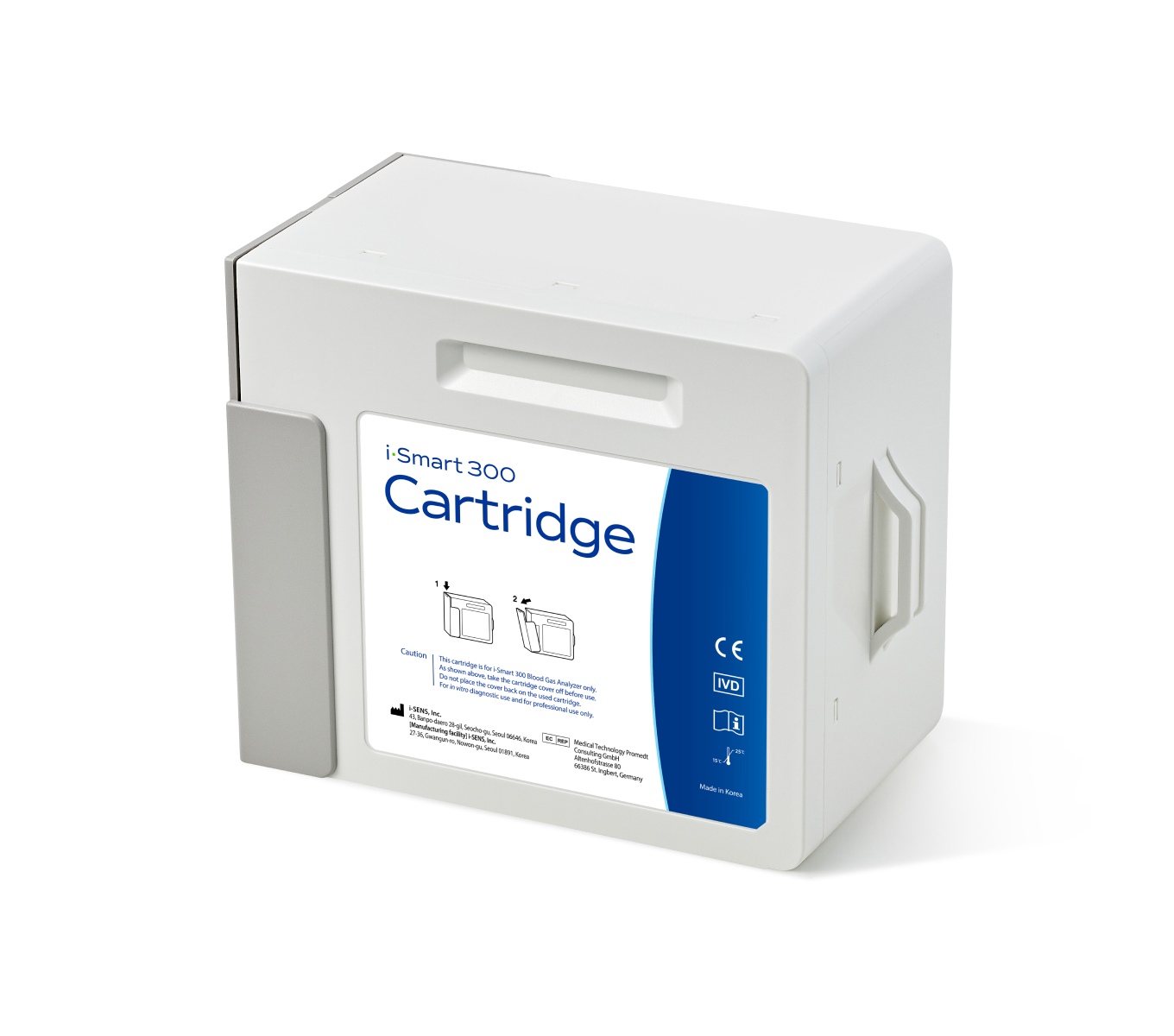

Cartridge

i-Smart 300 Catridge

i-Smart 300 Cartridge

Measurement items
pH, pCO2, pO2, Na+, K+, Cl–, Ca2+, Hct
Calculation items
pH(T), pCO2(T), pO2(T), ctCO2, cHCO3-, cHCO3-(std), BE(ecf), BE(B), ctHb, Ca2+(7.4), pO2(A-a), sO2
Sample type and volume
Heparinized whole blood/100 μL
Testing time
50 seconds
Calibration
Automatic or manual
Cartridge specifications
50 tests for 2 to 3 weeks
100 tests for 2 to 3 weeks
200 tests for 2 to 3 weeks
300 tests for 2 to 3 weeks
Expiration date
6 months from the manufacturing date

Quality Control

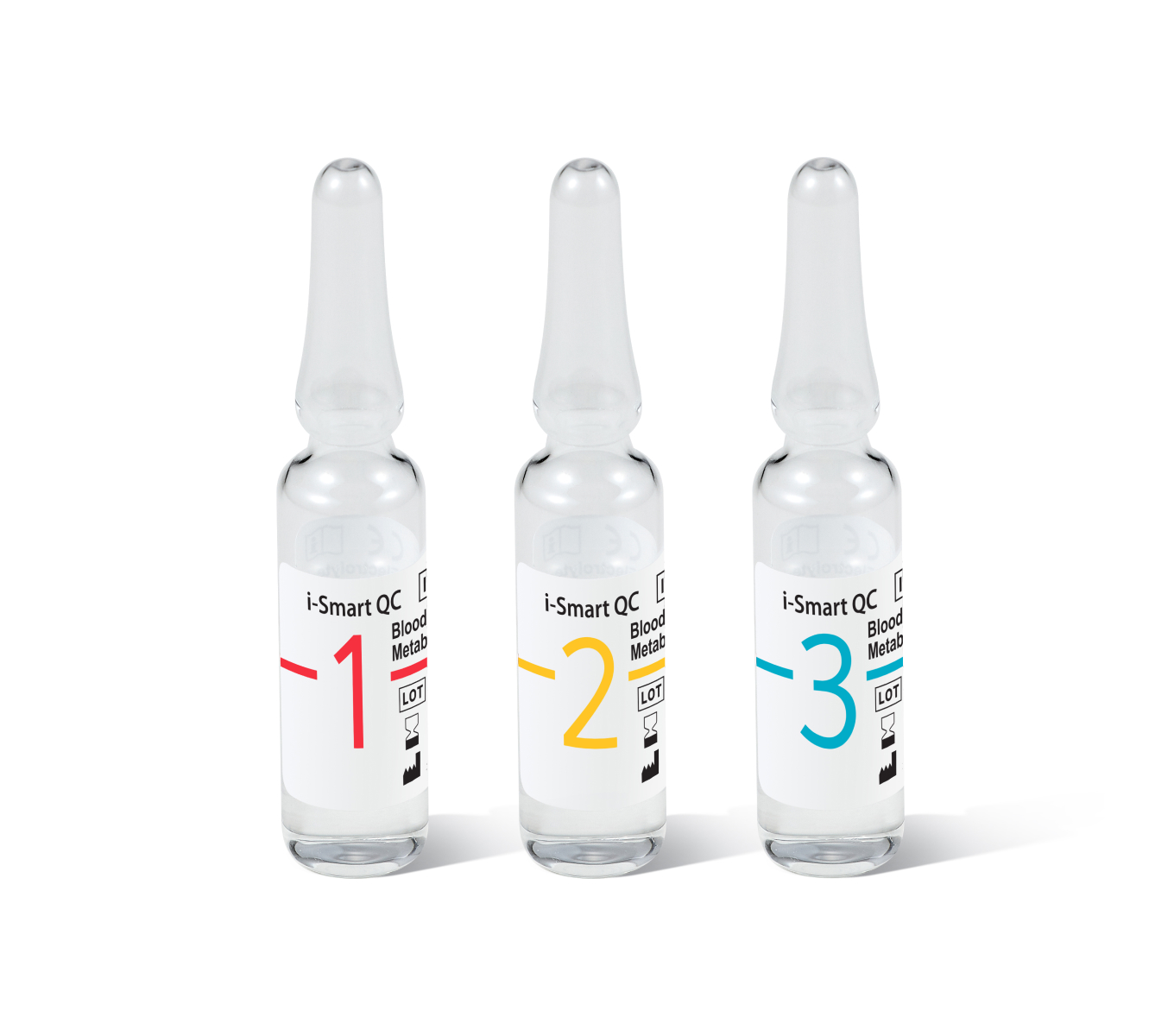

i Smart QC

i-Smart QC

Features
Blood gas Quality control material
Use with
i-SmartCare 10, i-Smart 300, and i-Smart 300 VET Analyzers
Level
1, 2, 3
Volume
2.5 mL * 10 vials per level
