i-Smart 300 VET

Product

i-Smart 300 VET Analyzer

Features

  • Veterinary Blood Gas Analyzer
  • Provides menu and screen customization for ease of use for veterinarians
  • All-in-One cartridge system including electrodes, reagents, and all other consumables
  • Rapid testing time (50 seconds) and small blood volume (100 μL)
Product Inquiry

Product Information

Size / Weight
257 x 252 x 394 mm / 7.1 kg
Display
8 inch color LCD (touchscreen)
Printer
Two-inch (built-in) thermal printer
Interface
Serial (RS-232), LAN (RJ45 Ethernet)
Power
100–240 VAC, 50–60 Hz
Built-in battery
Up to 2 hours of use (Lithium-ion cell)

Cartridge

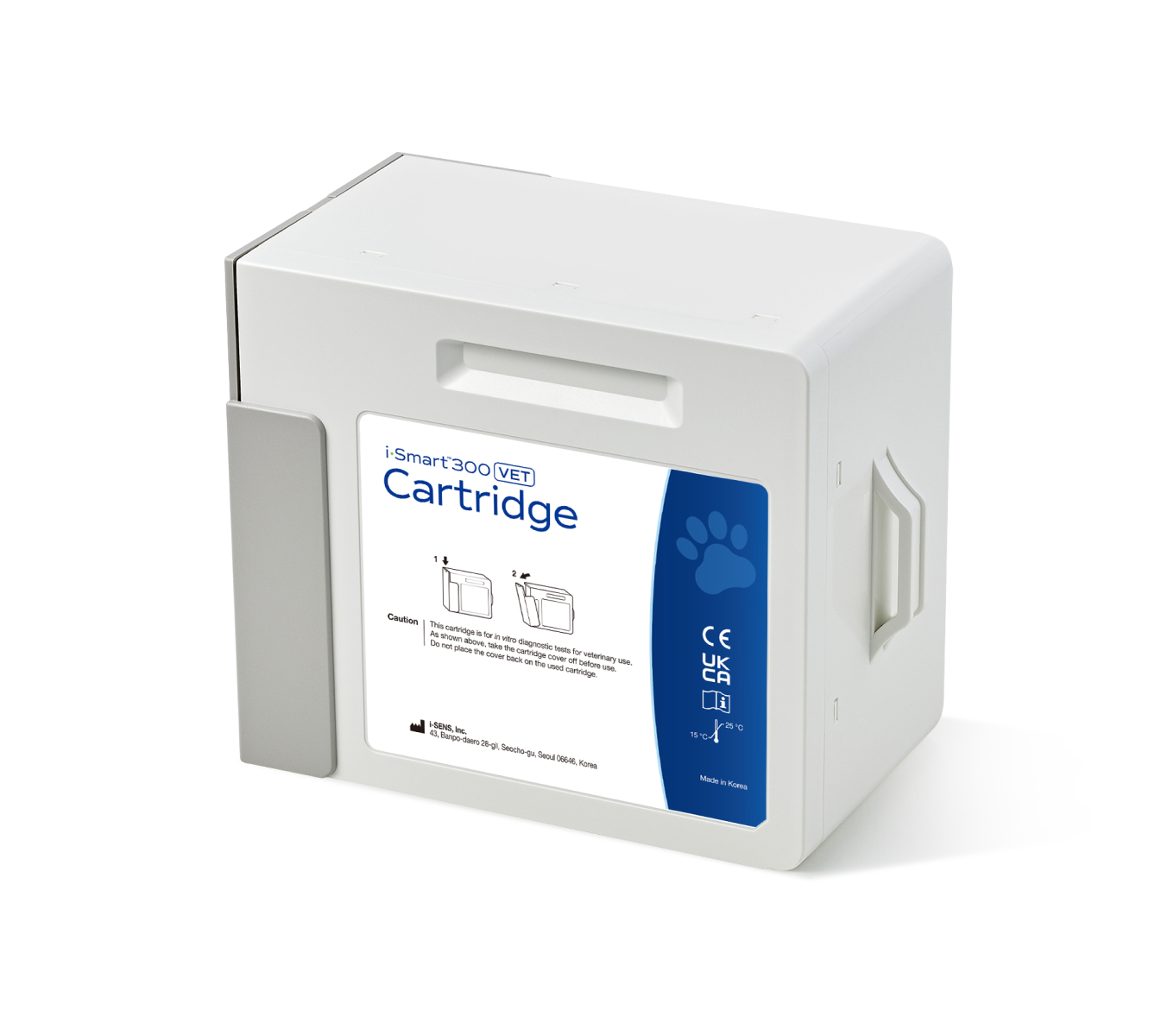

i-Smart 300 VET Cartridge

i-Smart 300 VET Cartridge

Measurement items
pH, pCO2, pO2, Na+, K+, Cl–, Ca2+, Hct
Calculation items
pH(T), pCO2(T), pO2(T), tCO2, HCO3–, HCO3–(std), BE(ecf), BE(B), Anion Gap(K), tHb, Ca2+(7.4), pO2(A-a), sO2
Sample type and volume
Heparinized whole blood 100 μL
Testing time
50 seconds
Calibration
Automatic or manual
Cartridge specifications
30 tests for 3 weeks
50 tests for 3 weeks
100 tests for 3 weeks
200 tests for 3 weeks
300 tests for 3 weeks
Expiration date
6 months from the manufacturing date

Quality Control

i Smart QC

i-Smart QC

Features
Blood Gas, Electrolyte, and Metabolite Control Solution
Use with
i-Smart 300 VET Cartridge
Level
1, 2, 3
Volume
2.5 mL * 10 vials per level
