i-SmartCare 10

Product

i-SmartCare 10 Blood Gas Analyzer

Features

  • User-friendly GUI and easy usability
  • Built-in large capacity battery that can be used for 2 hours on its own charge
  • No additional consumables or maintenance required due to the use of an all-in-one cartridge, including reagents, electrodes, and waste bag

Product Information

Size / Weight
269 X 391 X 255 mm / 8.4 kg
Operating Temperature
15-35 °C
Display
9 inch color LCD (touchscreen)
Printer
Two-inch (built-in) thermal printer
Interface
Serial (RS-232), LAN (RJ45 Ethernet)
Power
100–240 VAC, 50/60 Hz
Built-in battery
Up to 2 hours of use (lithium-ion cell)

Cartridge

i-SmartCare 10 Catridge

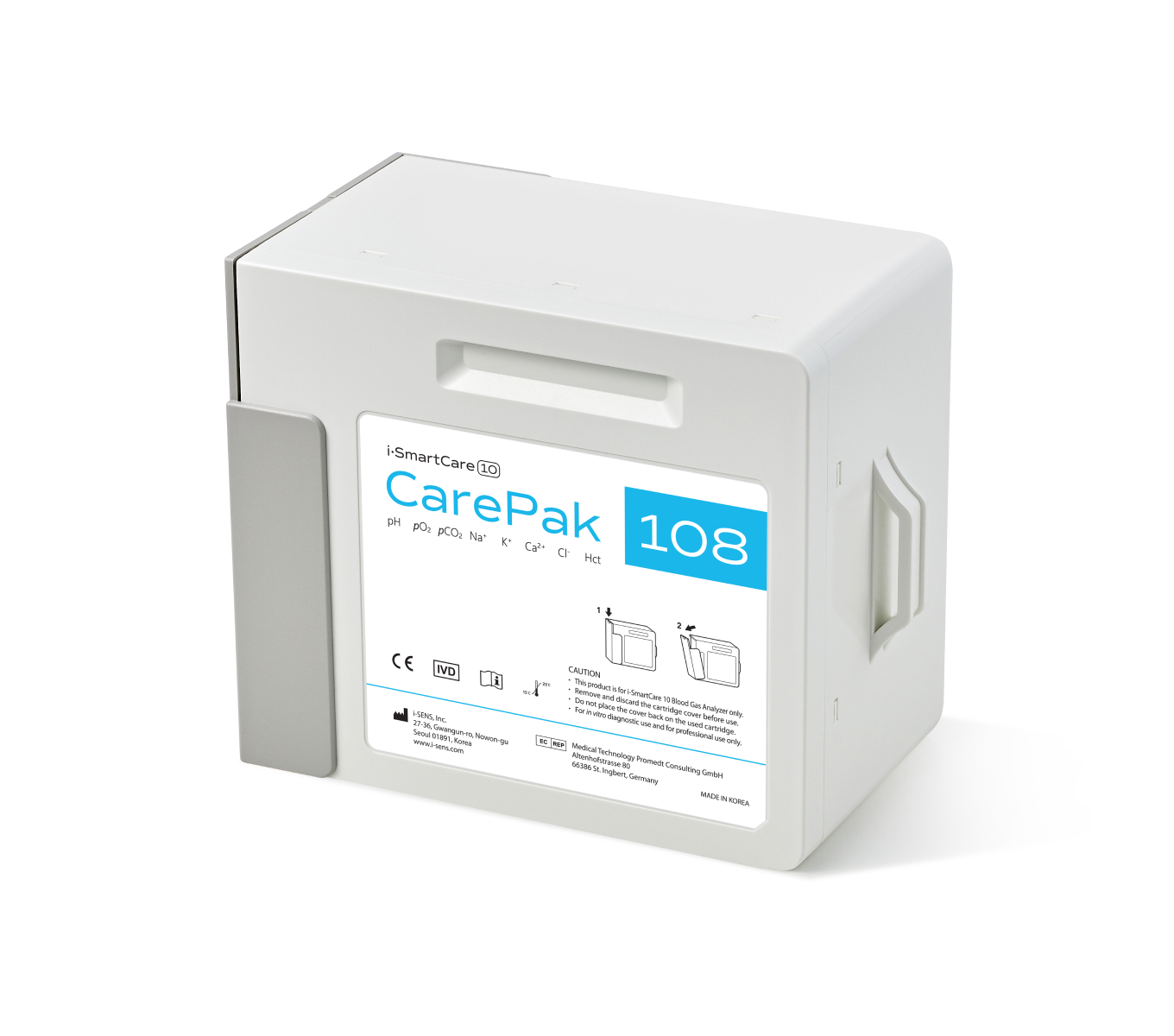

CarePak 108 Cartridge

Measurement items
pH, pCO2, pO2, Na+, K+, Ca2+, Cl, Hct
Calculation items
pH(T), pCO2(T), pO2(T), tCO2, HCO3, HCO3(std), BE(ecf), BE(B), Anion Gap(K), tHb, Ca2+(7.4), pO2(A-a), sO2
Sample type and volume
Heparinized whole blood/100 μL
Testing time
50 seconds
Calibration
Automatic or manual
Cartridge specifications
50 tests for 3 weeks
100 tests for 3 weeks
200 tests for 2 to 3 weeks
300 tests for 3 weeks
Expiration date
6 months from the manufacturing date
i-SmartCare 10 Catridge

CarePak 110 Cartridge

Measurement items
pH, pCO2, pO2, Na+, K+, Ca2+, Cl, Hct,
Glu, Lac
Calculation items
pH(T), pCO2(T), pO2(T), tCO2, HCO3,
HCO3(std), BE(ecf), BE(B), Anion Gap(K), tHb, Ca2+(7.4),
pO2(A-a), sO2
Sample type and volume
Heparinized whole blood/100 μL
Testing time
50 seconds
Calibration
Automatic or manual
Cartridge specifications
50 tests for 2 to 3 weeks
100 tests for 2 to 3 weeks
200 tests for 2 to 3 weeks
300 tests for 2 to 3 weeks
Expiration date
6 months from the manufacturing date

Quality Control

i Smart QC

i-Smart QC

Features
Blood Gas, Electrolyte, and Metabolite Control Solution
Use with
i-Smart 300 VET Cartridge
Level
1, 2, 3
Volume
2.5 mL * 10 vials per level
